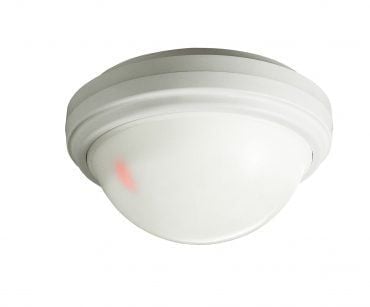

| Model | SX-360Z |
| Detection method | Passive Infrared |

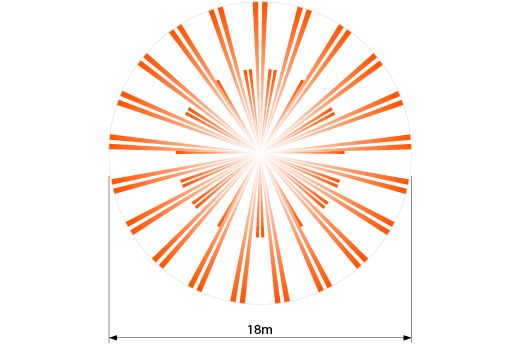

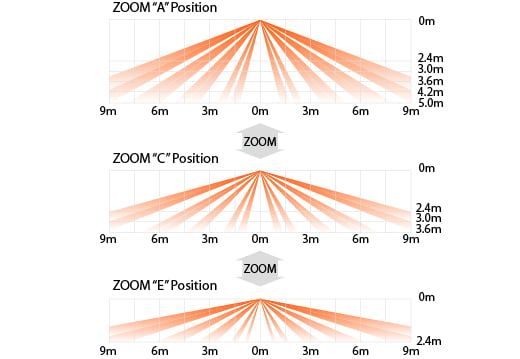

| Coverage | ø18m 360° zoom |
| Detection zones | 276 zones |
| Mounting height | 2.4 to 5.0m |
| LED alarm indicator | LED blinks during warm-up period / Alarm condition |
| Alarm period | 2.0 ± 0.5 sec. |
| Alarm output | N.C. 28 VDC 0.2A max. |
| Tamper switch | N.C, opens when cover is removed: 30 VDC 0.1A max. |
| Sensitivity/range | 1.6°C at 0.6m/sec. at 2.4m mounting height |
| Warm up period | Approx. 20 sec. (LED blinks) |
| Power input | 6 to 18 VDC |
| Current draw | 18mA (max.) |
| Dimensions | ø128mm x 67 - 73mm |
| Weight | 224 g |
| Operating temperature | -20 to +50°C |
| Environment humidity | 95% |
| RF interference | No alarm 30V/m |
